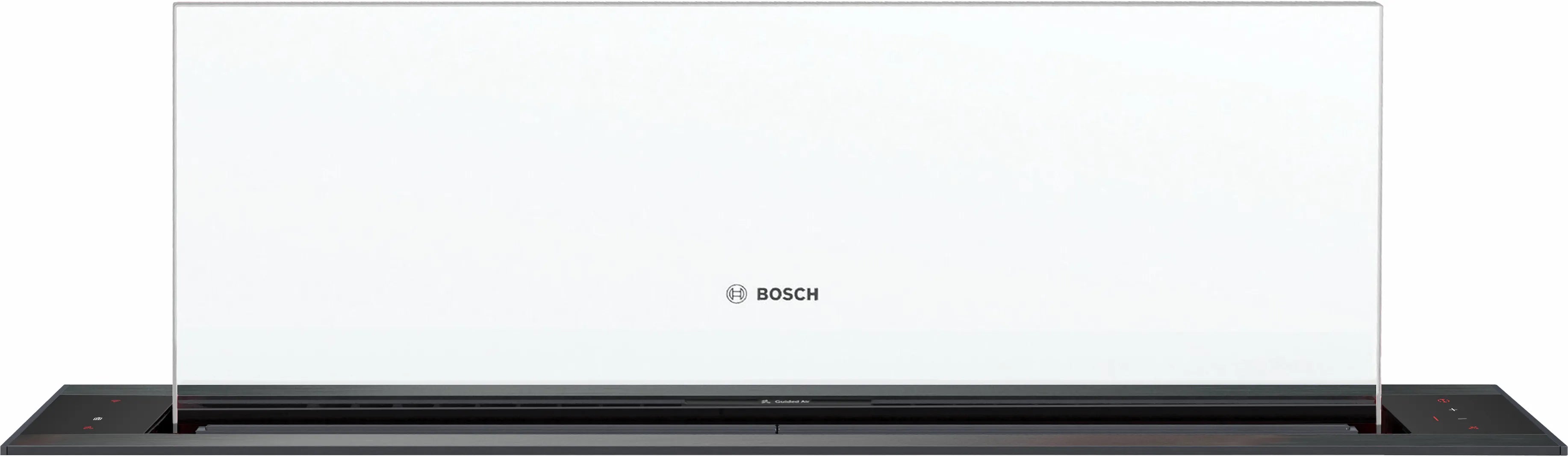

Bosch Ddw88mm60b Front View With Glass Panel Raised

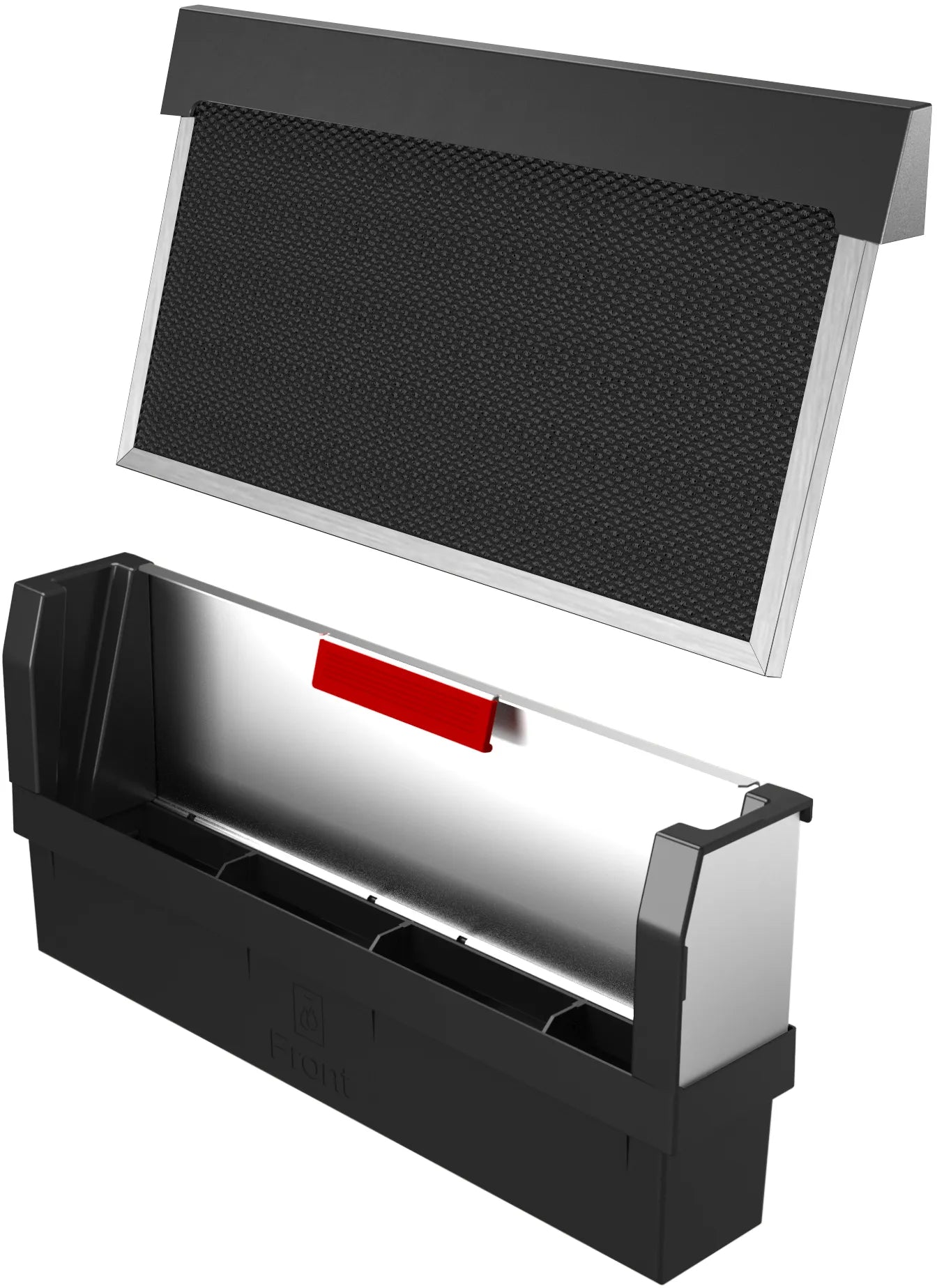

Ddw88mm60b Bosch Mesh Filter Panel Angled View

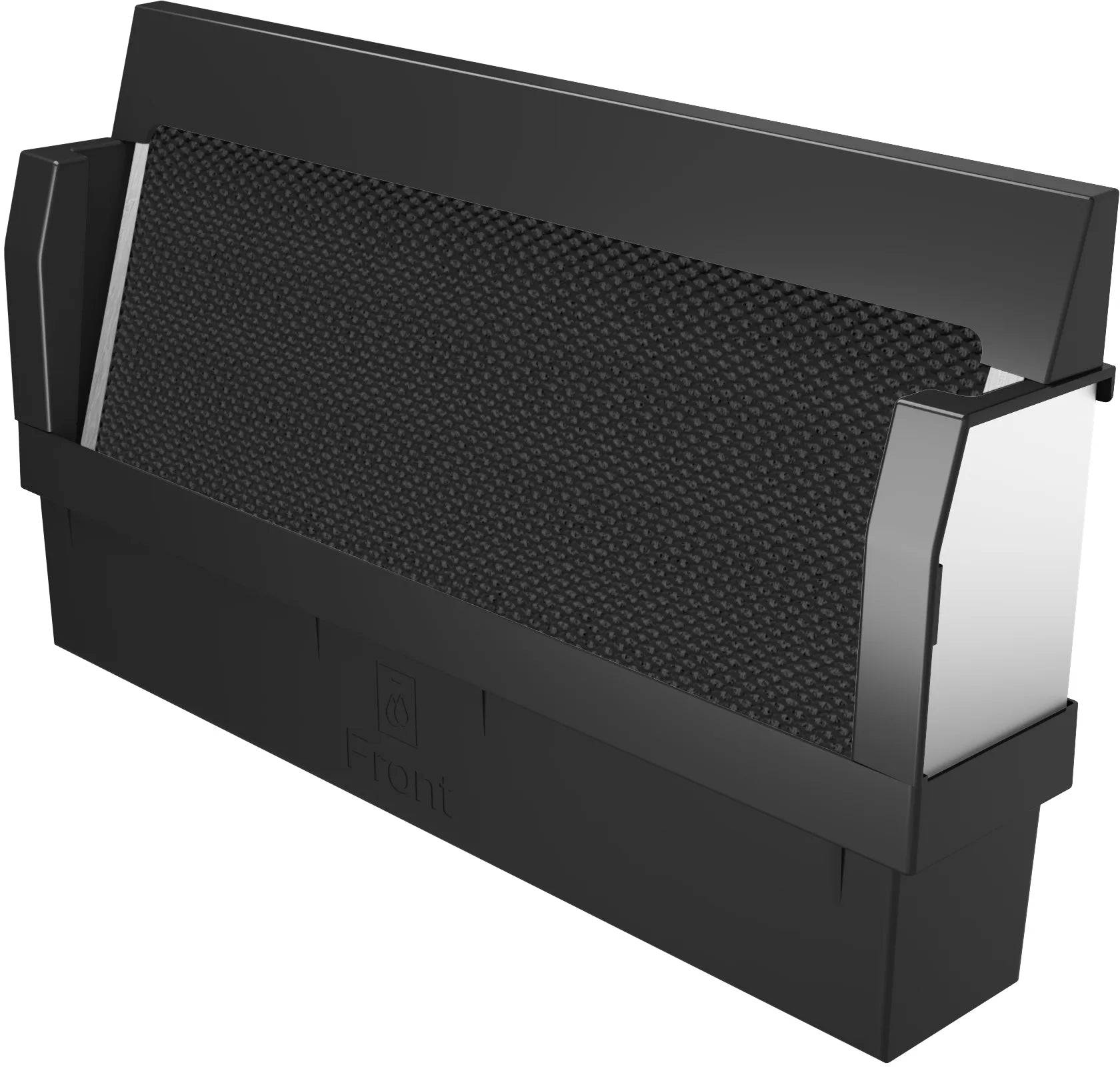

Ddw88mm60b With Filter Panel Removed Exploded View

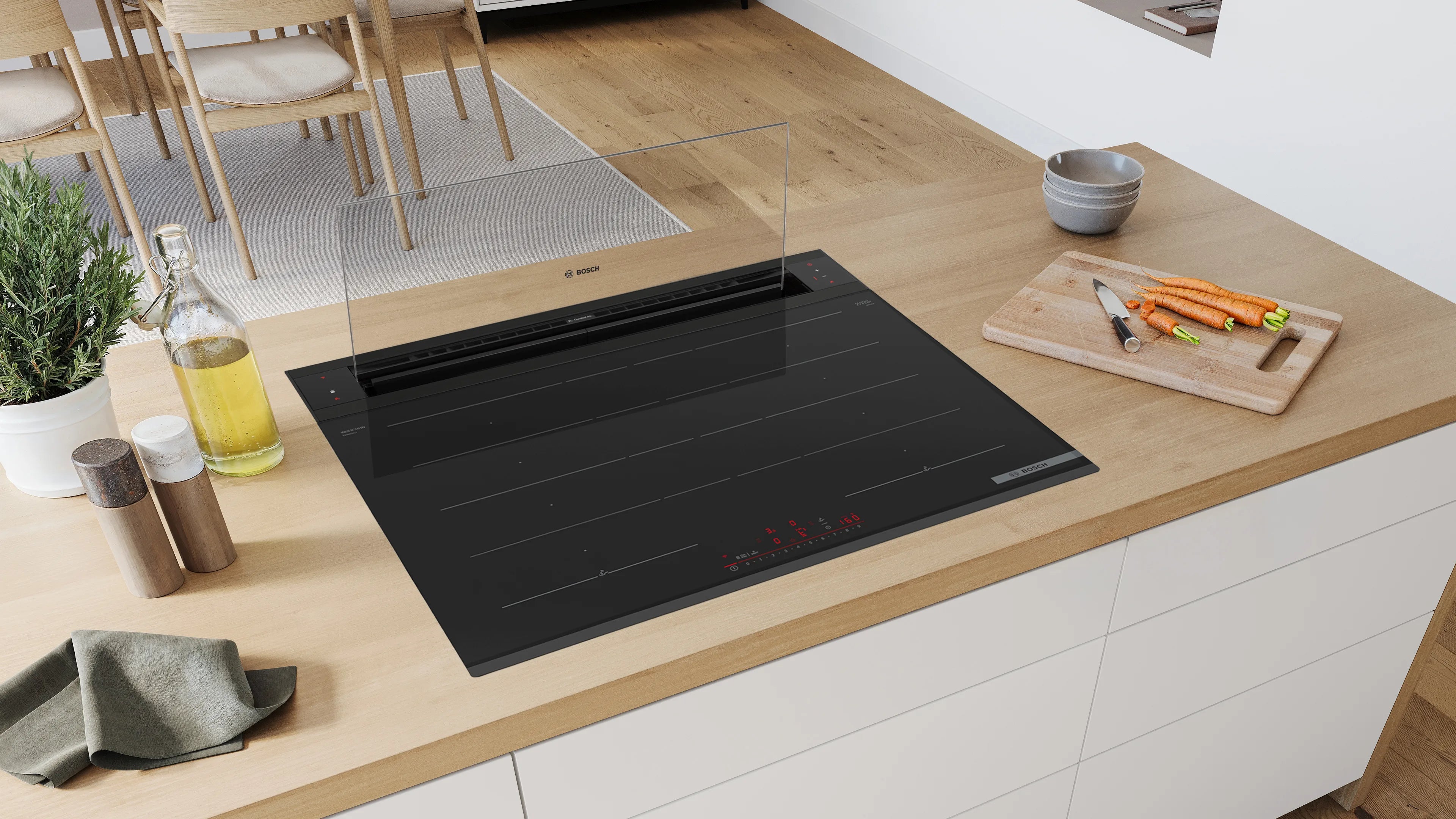

Ddw88mm60b Installed Behind Hob on Wooden Worktop

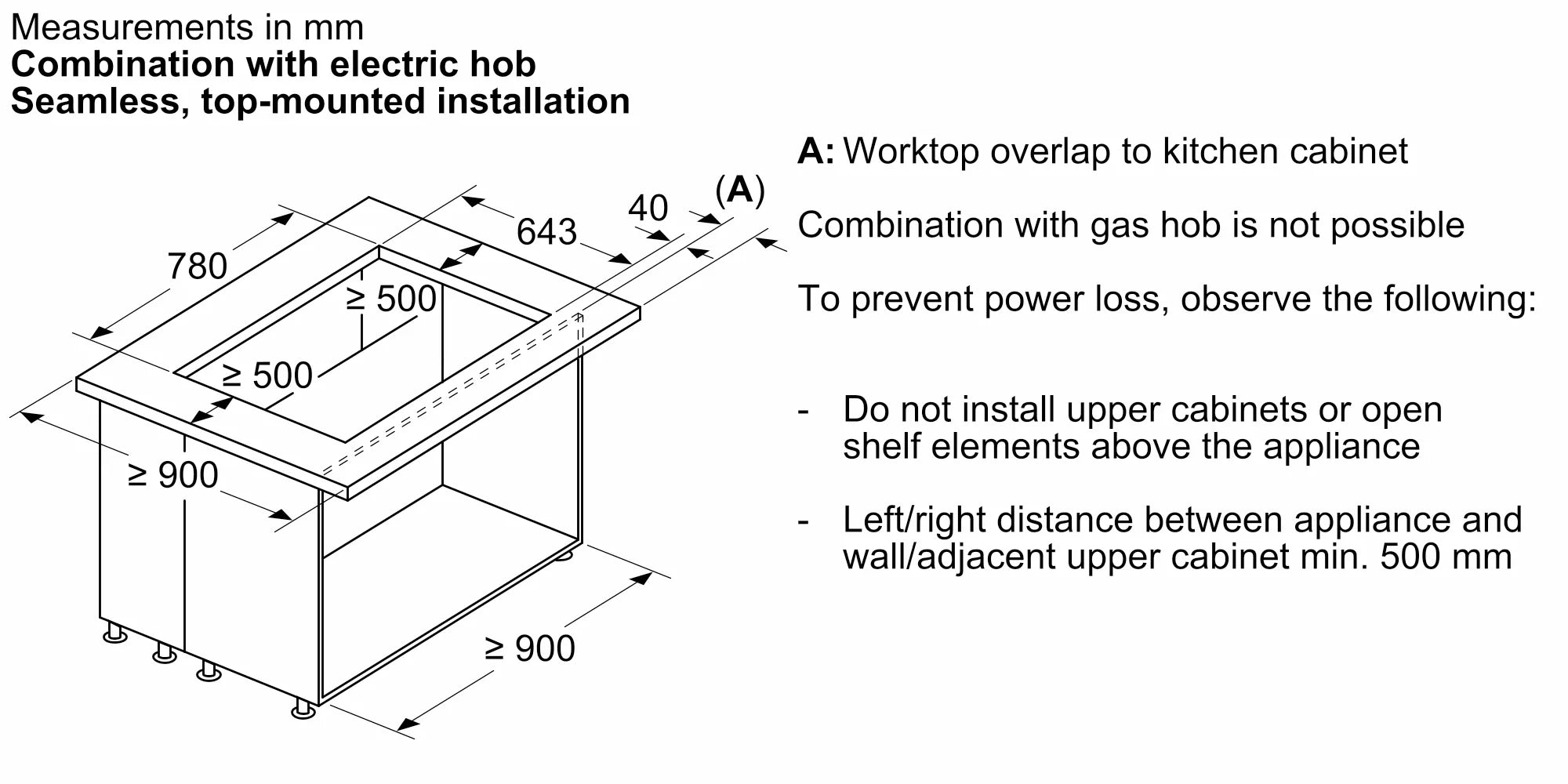

Ddw88mm60b Bosch Installation Dimensions With Electric Hob

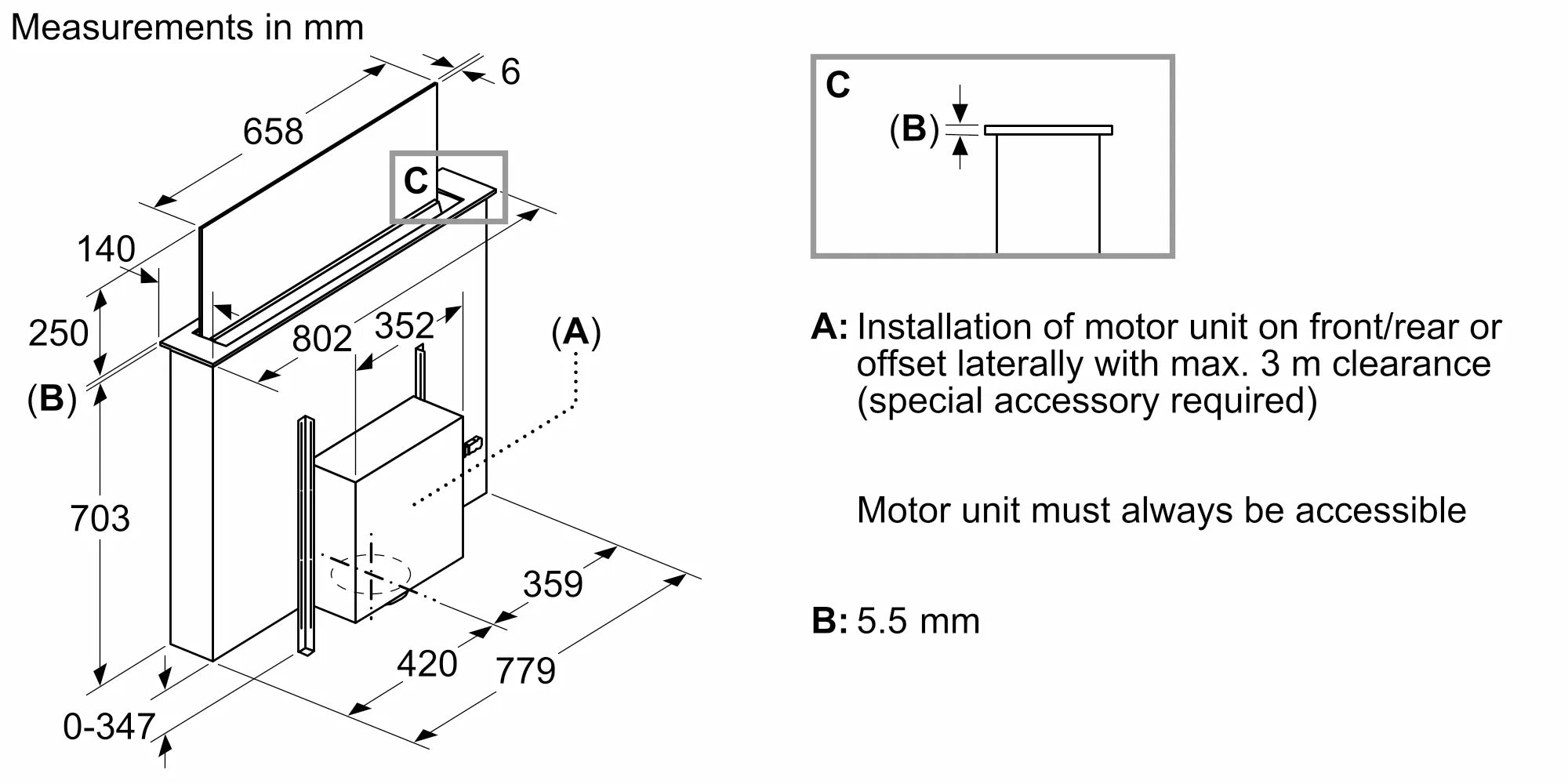

Bosch Ddw88mm60b Motor Unit Installation Dimensions Diagram

Bosch Series 8 80cm Downdraft Hood with PerfectAir Sensor, Black

Model No: DDW88MM60B

Bosch DDW88MM60B is an 80 cm built-in downdraft hood in black with a clear glass panel. It reaches 775 m³/h at the intensive setting and has 3 speed settings plus 2 intensive settings, a PerfectAir sensor, a SilentPowerDrive motor, hob-based hood control and Home Connect.

Rs. 799,000

Ask on WhatsApp
Same-Day Delivery
100% Original Product
Official Warranty
Dedicated Support

80 cm

Width

Downdraft Hood

Type

775 m³/h intensive

Extraction Rate

62 dB(A) re 1 pW

Noise Level

3 + 2 intensive

Speeds

Bosch DDW88MM60B Overview

With an intensive extraction rate of 775 m³/h, DDW88MM60B is a Bosch Series 8 downdraft hood, 80 cm wide, in black with a clear glass panel. It has 3 speed settings and 2 intensive settings, with 501 m³/h at maximum normal use under EN 61591. Noise is 62 dB(A) re 1 pW at maximum normal use and 70 dB(A) re 1 pW at intensive. Two removable metal grease filter cassettes in washable stainless steel have a saturation indicator, and the hood has no lighting. It connects to a 150 mm duct, extends by 250 mm, fits a 781 mm wide niche and weighs 37.5 kg. It is not suitable for use with gas hobs. Kaka Home delivers it nationwide with official Bosch warranty.

Bosch DDW88MM60B Features

PerfectAir Sensor

The PerfectAir sensor controls the hood settings automatically.

SilentPowerDrive Motor

SilentPowerDrive is a brushless BLDC motor with a connection rating of 300 W.

Hob-based Hood Control

A Home Connect hob can operate the hood through hob-based hood control.

Home Connect

Home Connect gives remote monitoring and control of the hood from a smartphone or tablet, where the service is available.

3 Speeds and 2 Intensive Settings

The hood gives 501 m³/h at maximum normal use and 775 m³/h at the intensive setting. The intensive setting reverts automatically after 6 minutes.

Filter Saturation Indicator

Two removable metal grease filter cassettes have a saturation indicator. The filter service button lifts the filters into the service position.

Full specifications

Bosch
DDW88MM60B
Series 8
Downdraft
Built-in
Black, clear glass (material body: glass)
TouchControl, via app (Home Connect)
Not Specified
Both (air extraction; recirculation with optional kit: 416 m³/h max. normal use, 525 m³/h intensive)
802 mm (80 cm)
709 to 959 mm (extension height 250 mm)
140 mm
N/A (Height of the chimney: N/A)
N/A (downdraft hood)
N/A (not suitable for combination with gas hobs)
150 mm
Not Specified
775 m³/h (intensive, EN 61591)
223 to 501 m³/h (minimum to maximum normal use)
775 m³/h
Not Specified
3 + 2 intensive
Yes (2 intensive settings)
Yes (automatic after-run, 10 min)
359 Pa (at best efficiency point)
39 dB(A) re 1 pW
62 dB(A) re 1 pW
70 dB(A) re 1 pW
dB(A) re 1 pW, EN 60704-3 and EN 60704-2-13, air extraction (recirculation: 65 dB(A) max. normal use, 70 dB(A) intensive)
Yes (SilentPowerDrive)
Brushless BLDC motor (SilentPowerDrive)
300 W (total power of the motors)
300 W (connection rating)
220 to 240 V, 50/60 Hz
GB plug
130 cm
10 A
Metal grease filter cassettes, washable stainless steel
2
Not Specified
No (optional accessory)
No (optional accessory: Clean Air Plus recirculation kit DSZ1WW1I6 or Long Life recirculation kit DSZ1WW1J1)
Yes (metal and charcoal filter)
No (No-return airflow flap: No)
N/A (Type of lamps used: None)
N/A
N/A
N/A
N/A
N/A
TouchControl (right-hand user interface)
Not Specified
No (Remote control: No)
Run-on: Yes (automatic after-run, 10 min). Soft start: Not Specified
Not Specified
Yes (automatic intensive revert after 6 min)
Not Specified
Yes (Home Connect)
Yes (Home Connect)
Yes (voice control via popular voice assistants, where available)
Yes (Home Connect: Remote Monitoring and Control)
Yes (PerfectAir sensor)
Yes (hob-based hood control with a Home Connect hob)
A
36.9 kWh/year
A (29.6)
N/A (no lighting)
B (90.7 %)
Standby: 0.41 W. Off mode: Not Specified
802 mm
709 mm (959 mm extended)
140 mm
37.5 kg
1330 x 620 x 870 mm (W x H x D)
Not Specified
Not Specified
Niche 781 x 703 x 123 mm (W x H x D), suitable for a 90 cm cabinet
Clean Air Plus recirculation kit DSZ1WW1I6, Long Life recirculation kit DSZ1WW1J1, Clean Air Plus odour filter DSZ1WW1B6, remote motor installation kit DSZ1WW1M1, mounting kit for seamless installation DSZ8WW1Y2, duct parts (DZZ1WW1X1 flat duct adapter, DZZ1XX1X1 Aluflex pipe, HEZ9VDS series flat duct parts)
1 Year
Official Bosch Pakistan warranty via Kaka Home
