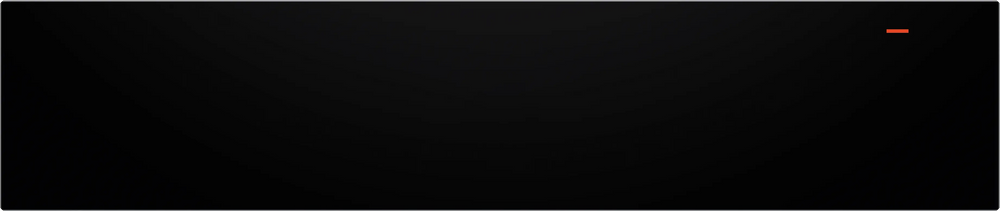

Bosch Series 8 Built-In Warming Drawer, 60 x 14 cm, 20 L, Black
Model No: BIC7101B1B
The Bosch Series 8 BIC7101B1B is a black built-in warming drawer, 14 cm high and 60 cm wide. It has a 20 L interior, a 30 to 80 °C temperature range, touch control, a push and pull opening, room for 12 plates or 64 espresso cups, and Home Connect.
Rs. 349,000
Built-In
Type
20 L
Capacity
30 to 80 °C
Temperature Range
12 Plates, 64 Cups
Load
Home Connect
Connectivity
Bosch Series 8 Built-In Warming Drawer Overview
Bosch Series 8 Built-In Warming Drawer Features
Keep Warm, Slow Cooking and Preheating
Keep warm keeps cooked dishes warm. Slow cooking cooks slowly and gently at a low temperature. Preheat cups and Preheat plates keep beverages and dishes hot longer.
30 to 80 °C Temperature Range
The temperature range runs from 30 to 80 °C.

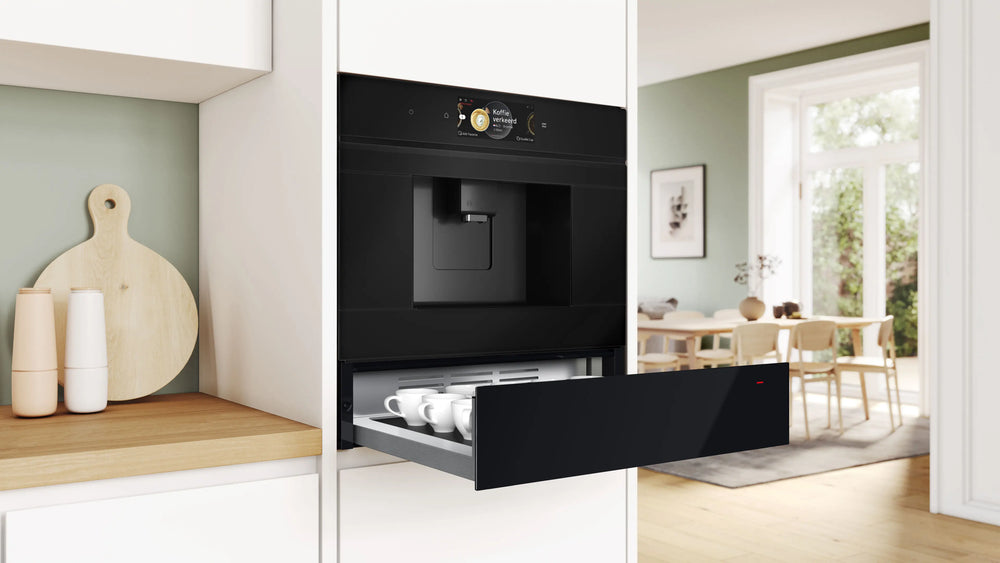

20 L Capacity for Plates and Cups
The 20 L interior carries up to 25 kg, with room for 12 plates of 26 cm diameter or 64 espresso cups.
Touch Control
Touch control sets the drawer, and the drawer can also be controlled via the app.
Home Connect
Home Connect controls the warming drawer from wherever you want. Features are iService Remote and Remote Monitoring and Control.

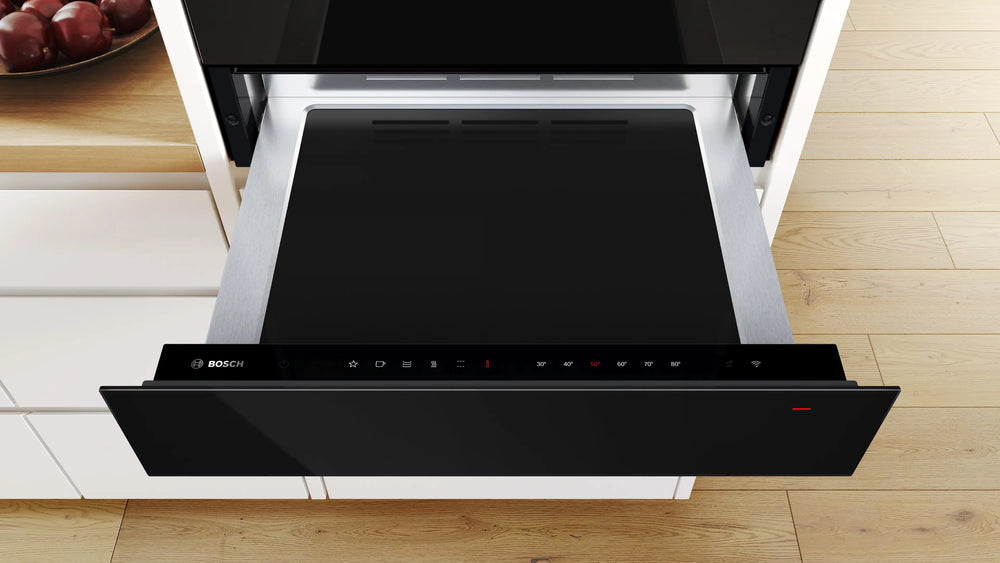

Push and Pull Opening
A spring mechanism opens and closes the drawer with a push and pull handle.
Full specifications
| Brand | Bosch |
| Model Number | BIC7101B1B |
| Series / Product Line | Series 8 |
| Product Type | Built-in warming drawer |
| Installation Type | Built-in |
| Colour / Finish | Black |
| Handle Type | Push and pull |
| Drawer Opening | Push-pull spring mechanism |
| Net Capacity | 20.0 L |
| Maximum Load | 25 kg |
| Maximum Number of Plates | 12 |
| Plate Diameter (Reference) | 26 cm |
| Maximum Number of Espresso Cups | 64 |
| Place Settings | 6 (user manual) |
| Temperature Range | 30 to 80 °C |
| Number of Power Levels | 6 (Bosch pages for BIC7101B1B); 4 temperature levels (sibling sheet) |
| Preheat Cups Temperature | 50 °C default, 40 to 60 °C (user manual) |
| Preheat Plates / Cookware Temperature | 60 °C default, 50 to 70 °C (user manual) |
| Keep Warm Temperature | 70 °C default, 60 to 80 °C (user manual) |
| Slow Cooking Temperature | 80 °C default, 70 to 80 °C (user manual) |
| Ready-to-use Time | About 60 seconds after first switch-on (user manual) |
| Cooking Methods | Preheating cups, Warming plates, Low temperature cooking, Warming |
| Keep Warm | Yes |
| Slow Cooking | Yes |
| Preheat Cups | Yes |
| Preheat Plates | Yes |
| Defrost | Yes (40 or 60 °C) (user manual) |
| Dough Proving and Yoghurt | Yes (yeast dough and yoghurt at 40 °C) (user manual) |
| Sabbath Mode | Yes (30 to 80 °C, up to 74 hours) (user manual) |
| Control Type | Electronic |
| Control Method | Touch control, via app |
| Display Type | Operation indicator (user manual); touch control (Bosch pages) |
| Switch-off Timer | Yes (set in the Home Connect app) (user manual) |
| Sound Signal | Yes (tone on switch-on, switch-off and faults) (user manual) |
| Home Connect | Yes |
| Home Connect Features | iService Remote, Remote Monitoring and Control |
| Companion App | Yes (Home Connect app) |
| Remote Monitoring and Control | Yes |
| Remote Diagnostics | Yes (iService Remote) |
| Automatic Safety Switch-off | Yes (all heating off after 24 hours without control use, deactivated in Sabbath mode) (user manual); Bosch pages print Safety device: Not applicable |
| Operation Indicator | Yes (off, on, heating, fault) (user manual) |
| Tilt Protection | Yes (needed for certain installation combinations) (user manual) |
| Front Material | Glass front (user manual); colour Black |
| Housing Surfaces | Stainless steel (user manual) |
| Drawer Mechanism | Push-pull spring mechanism |
| Full Extension | Yes (pulls out as far as it will go) (user manual) |
| Interior Light | No |
| Cleaning Method | Damp cloth and neutral cleaner (user manual) |
| Cleaning Agents to Avoid | Steam or high-pressure cleaners, abrasive detergents, high-alcohol cleaners, hard scouring pads (user manual) |
| Recommended Cookware | Glass, porcelain or ceramic for low temperature cooking (user manual) |
| Connection Rating | 820 W |
| Voltage | 220 to 240 V |
| Plug Type | GB plug |
| Cable Length | 175 cm |
| Standby Power Consumption | Maximum 2 W in networked standby (user manual) |

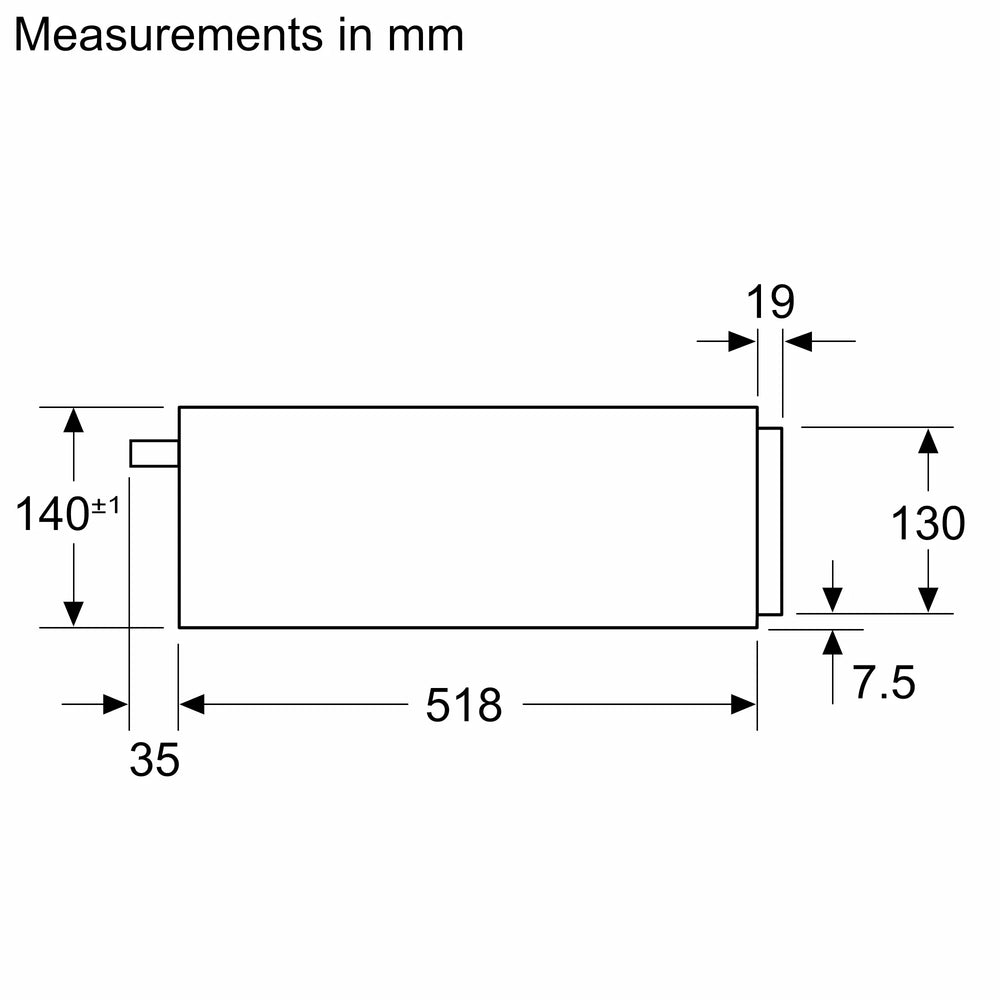

| Appliance Dimensions (H x W x D) | 140 x 594 x 518 mm |
| Niche Height | 140 mm |
| Niche Width | 560 to 568 mm |
| Niche Depth | 550 mm |
| Installation Position | Built-in; a fixed intermediate floor is needed above (user manual) |
| Ventilation Clearance | Rear ventilation slots and air intakes must not be covered, no rear panel; no dimension printed (user manual) |
| Net Weight | 19.1 kg |
| Packing Dimensions | 250 x 660 x 700 mm (H x W x D) |
| Product Warranty | 1 year |
| Warranty Provider | Kaka Home, Bosch Distributor in Pakistan |
