Bosch Series 4 90cm Inclined Chimney Hood with LED Lighting, Black
Model No: DWK96PJ60M
Bosch DWK96PJ60M is a 90 cm inclined chimney hood in black printed clear glass. It reaches 700 m³/h at the intensive setting, with 2 speed settings plus an intensive setting, touch control, 2 LED lamps and a dishwasher safe aluminium grease filter.
Rs. 248,999
90 cm
Width
Chimney Hood
Type
700 m³/h intensive
Extraction Rate
59 dB(A) re 1 pW
Noise Level
2 + intensive
Speeds
Bosch DWK96PJ60M Overview
Bosch DWK96PJ60M Features
700 m³/h Intensive Setting
The intensive setting reaches 700 m³/h and resets automatically to the normal setting after 9 minutes.
Automatic After-run
The automatic after-run keeps the hood running for 15 minutes and then switches it off.
Filter Saturation Indicator
A clean filter reminder is fitted to the hood.

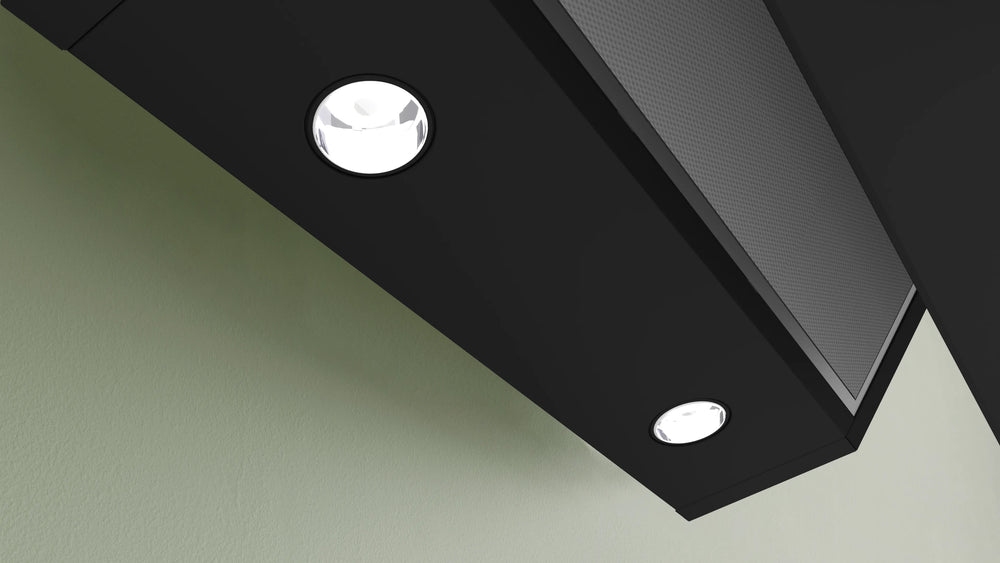

2 LED Lamps
Two LED lamps light the hob area with a warm colour temperature of 3000 K.
Dishwasher Safe Grease Filter
The metal grease filter cassette is washable aluminium and dishwasher safe.
Convertible Operation
The hood works in air extraction or, with an optional recirculation kit, in recirculation mode.
Full specifications
| Brand | Bosch |
| Model Number | DWK96PJ60M |
| Series / Product Line | Series 4 |
| Hood Type | Chimney (inclined glass design) |
| Installation Type | Wall mounted (Built-in / Free-standing: Built-in) |
| Colour / Finish | Black (clear glass, black printed) |
| Control Type | TouchControl for extractor speeds and light |
| Model Year | Not Specified |
| Installation Mode | Convertible (air extraction; recirculation with optional kit) |

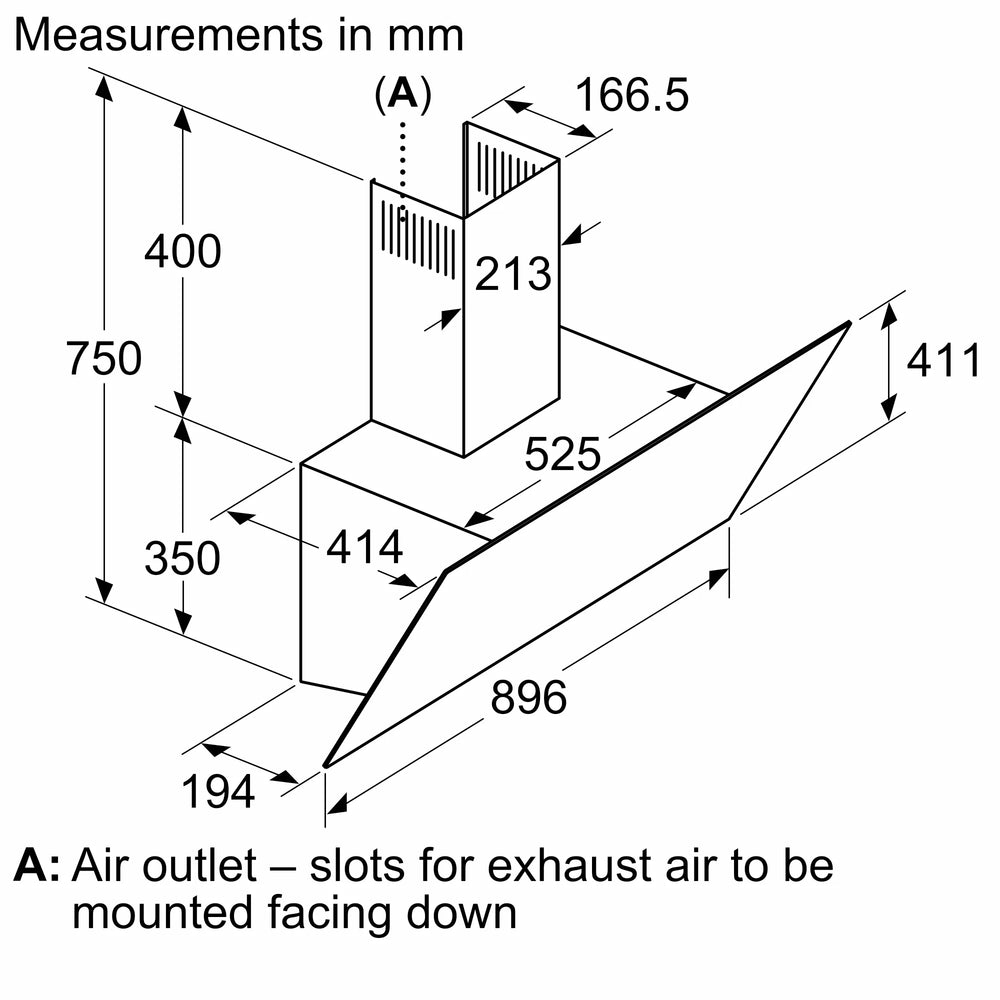

| Hood Width | 896 mm (90 cm) |
| Hood Height Range | 750 mm with chimney (air extraction and recirculation); 471 mm chimneyless recirculation |
| Hood Depth | 414 mm |
| Chimney Height Range | Not Specified |
| Minimum Distance Above Electric Hob | 470 mm |
| Minimum Distance Above Gas Hob | 570 mm |

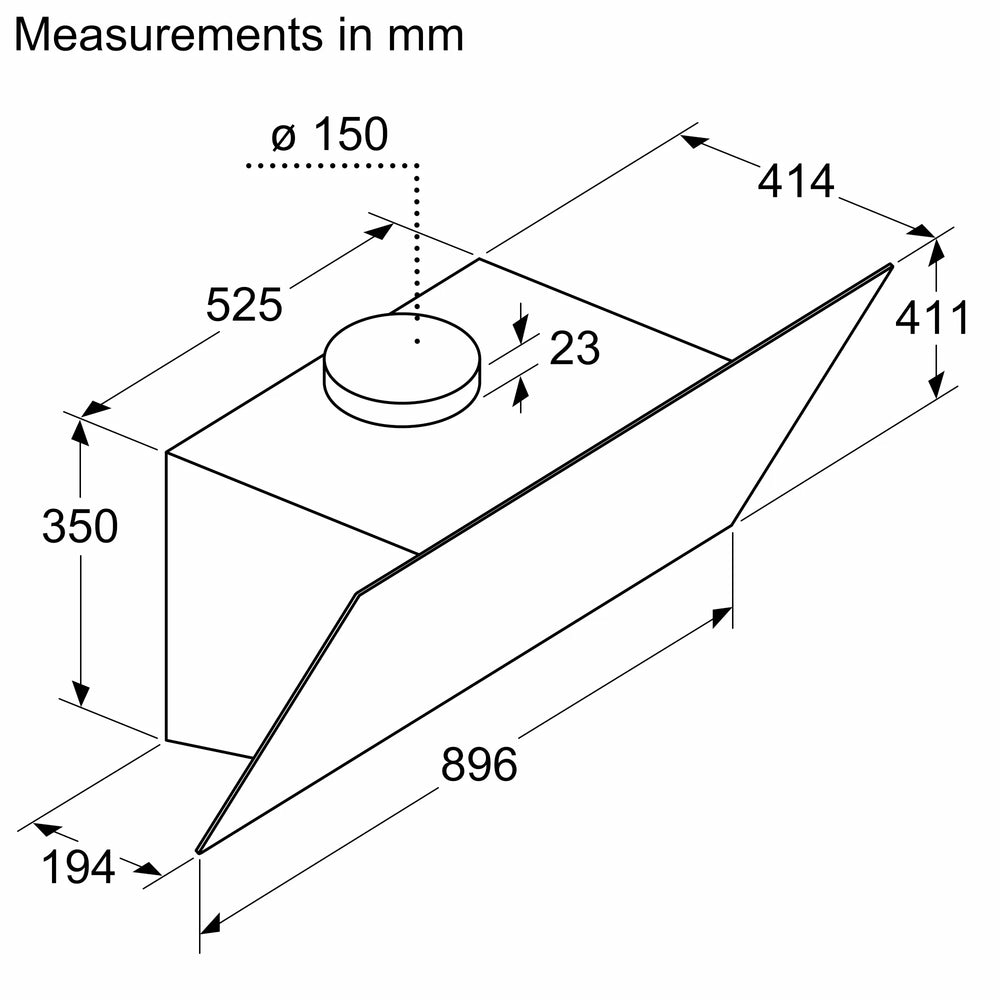

| Duct Connection Diameter | 120 / 150 mm |
| Duct Outlet Position | Not Specified |
| Maximum Extraction Rate | 700 m³/h (intensive, EN 61591) |
| Extraction Rate (Normal Use, EN 61591) | 290 m³/h (speed 1) to 510 m³/h (speed 2) |
| Extraction Rate (Intensive) | 700 m³/h |
| Extraction Rate (Free Blowing) | Not Specified |
| Number of Speed Levels | 2 + intensive |
| Intensive / Boost Level | Yes (Powerboost position) |
| Timer / Delayed Shut-off | Yes (automatic after-run, 15 min) |
| Air Pressure | Not Specified |
| Noise Level (Minimum Speed) | 46 dB(A) re 1 pW |
| Noise Level (Maximum Normal Speed) | 59 dB(A) re 1 pW |
| Noise Level (Intensive) | 65 dB(A) re 1 pW |
| Sound Power Rating Basis | dB(A) re 1 pW, EN IEC 60704-2-13, air extraction |
| Silent Motor Technology | Not Specified |
| Motor Type | Capacitor motor, integrated in the hood body |
| Motor Power | 210 W (total power of the motors) |
| Total Connected Load | 216 W (connection rating) |
| Voltage and Frequency | 220 to 240 V, 50 to 60 Hz |
| Cable / Plug | GB plug |
| Cable Length | 180 cm |
| Fuse | Not Specified |
| Grease Filter Type | Metal grease filter cassette, washable aluminium |
| Grease Filter Count | 1 |
| Dishwasher-safe Filter | Yes (metal grease filter, dishwasher safe) |
| Charcoal Filter Included | No (Odour filter: No) |
| Charcoal Filter for Recirculation | No (optional accessory: carbon fleece filter DWZ6HK1E2) |
| Filter Saturation Indicator | Yes (Clean filter reminders: Yes) |
| Backdraft Flap / Non-return Valve | Yes (No-return airflow flap: Yes) |
| Lighting Type | LED |
| Number of Lamps | 2 |
| Lamp Power | Not Specified |
| Light Colour / Temperature | Warm (3000 K) |
| Dimmable Light | Not Specified |
| Lighting Position | Hob area |
| Control Panel Type | TouchControl for extractor speeds and light |
| Display Type | Not Specified |
| Remote Control | No (Remote control: No) |
| Soft Start / Run-on | Run-on: Yes (automatic after-run, 15 min). Soft start: Not Specified |
| Sound Signal | Not Specified |
| Intensive Auto Shut-off | Yes (automatic reset from intensive to normal setting after 9 min) |
| Languages / Menu | Not Specified |
| Wi-Fi | No (Home Connect: No) |
| Companion App | No (Home Connect: No) |
| Voice Assistant | Not Specified |
| Remote Start and Control | No (Home Connect: No) |
| Air Quality / Humidity Sensor | No (PerfectAir: No) |
| Hob Link / Auto Connect | No (Hob-based hood control: No) |
| Energy Rating | A |
| Annual Energy Consumption | 48.4 kWh/year |
| Fluid Dynamic Efficiency | A (Blower Efficiency Class) |
| Lighting Efficiency | A |
| Grease Filtering Efficiency | D |
| Power Consumption (Off / Standby) | Not Specified |
| Width | 896 mm |
| Height | 400 mm (Height of the appliance); 750 mm with chimney |
| Depth | 414 mm |
| Net Weight | 12.4 kg |
| Packing Dimensions | 695 x 455 x 455 mm (W x H x D) |
| Packing Weight | 13.9 kg |
| Included Accessories | Not Specified |
| Required Installation Items | Not Specified |
| Optional Accessories | Carbon fleece filter DWZ6HK1E2; recirculation kit (no code printed) |
| Product Warranty | 1 Year |
| Warranty Provider | Official Bosch Pakistan warranty via Kaka Home |
