Bosch Series 6 687L Top Freezer Refrigerator, Brushed Steel KDN86HIE0M
Model No: KDN86HIE0M
Bosch Series 6 KDN86HIE0M is a 687-liter top freezer refrigerator with 641 liters of net storage across its fridge and freezer. Total No Frost, MultiAirflow cooling and VitaFresh XXL keep food fresh, and Home Connect lets you monitor it from your phone.
Rs. 449,999
641 L
Net Capacity
Top Freezer
Type
Total No Frost
Defrost
329 kWh/yr
Energy Use
860 x 1860 x 840 mm
Size (W x H x D)
Bosch KDN86HIE0M Overview
Bosch KDN86HIE0M Features
Total No Frost
Cold, dry air circulates through both the fridge and the freezer, so ice does not build up on the walls or on stored food. Manual defrosting is never needed.

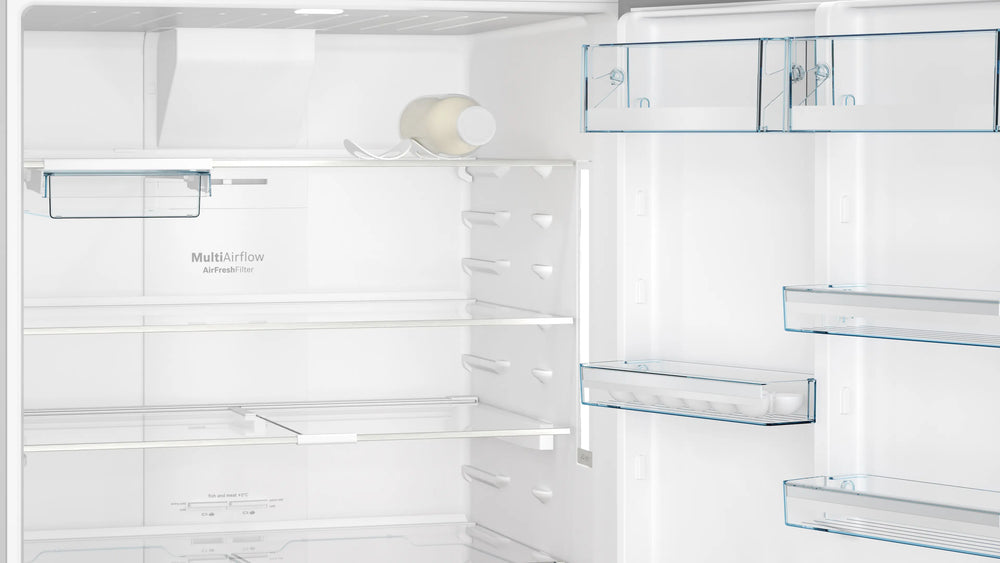

MultiAirflow
Multiple air outlets spread cold air evenly through the fridge compartment. Food on upper and lower shelves cools at a more even temperature.

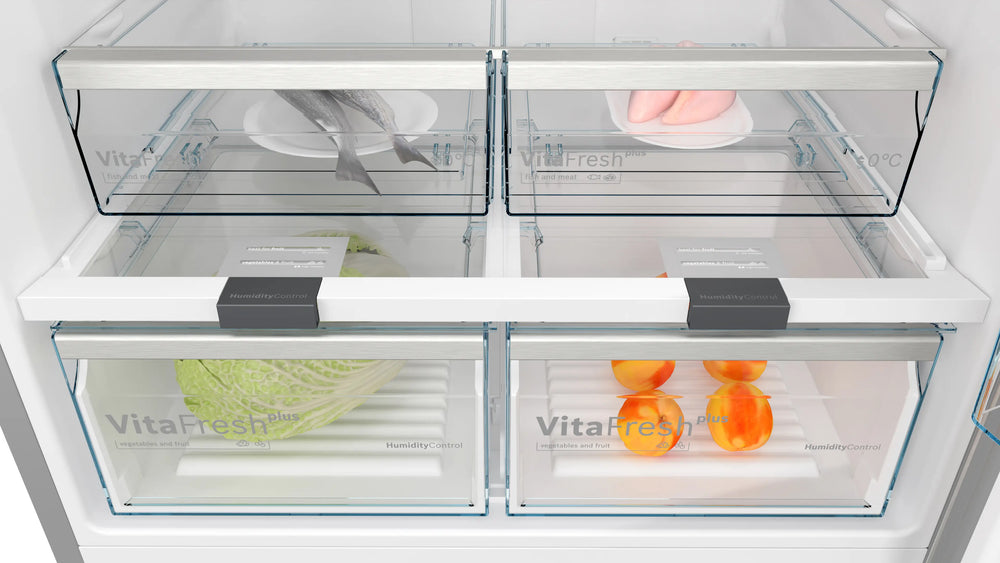

VitaFresh XXL
An extra-large drawer keeps fruit and vegetables in their own climate-controlled zone. Produce stays crisp and fresh for longer than on open shelves.
Home Connect
Connect the refrigerator to Wi-Fi and monitor it from a smartphone or tablet. Check its status from anywhere through the Home Connect app.
EasyAccess Shelf
A retractable safety glass shelf slides forward so items at the back come within reach. Loading and cleaning the shelf takes less effort.
Perfect Fit
Place the refrigerator directly beside side walls or kitchen cabinets. No side gap is needed, which saves floor space in compact kitchens.
Full specifications
| Brand | Bosch |
| Model Number | KDN86HIE0M |
| Series / Product Line | Series 6 |
| Refrigerator Type | Top Freezer |
| Installation Type | Freestanding |
| Number of Doors | 2 |
| Colour / Finish | Brushed Steel with Anti-Fingerprint coating (Stainless Steel) |
| Door Handle | Not Specified |
| Reversible Door | Yes |
| Model Year | Not Specified |
| Headline Capacity | 687 L |
| Gross Total Capacity | 687 L (505 L fridge, 182 L freezer) |
| Net Total Capacity | 641 L |
| Fridge Net Capacity | Not Specified |
| Freezer Net Capacity | Not Specified |
| Convertible Zone Capacity | No |
| Suitable Household Size | 6+ people |
| Cooling System | 2 independent cooling systems |
| Defrost Type | No Frost, fridge + freezer (Total No Frost) |
| Airflow System | Multi-Airflow (MultiAirflow) |
| Door Cooling Vents | No |
| Metal Cooling Plate | Not Specified |
| Fast Cool | Yes (SuperCooling) |
| Fast Freeze | No |
| Convertible Modes | No |
| Vacation Mode | Not Specified |
| Compressor Type | Not Specified |
| Annual Energy Consumption | 329 kWh/year |
| Energy Rating | E (EU energy label) |
| Climate Class | Not Specified |
| Noise Level | 41 dB(A) |
| Refrigerant | Not Specified |
| Power Supply | 220 to 240 V, 50 Hz, 100 W |
| Freezing Capacity | Not Specified |
| Storage Time in Power Failure | 14 hours |
| Stabilizer-Free Operation | Not Specified |
| Crisper Drawers | Not Specified |
| Humidity-Controlled Crisper | Yes (VitaFresh XXL) |
| Chill / 0°C Zone | Not Specified |
| Air Filter / Deodorizer | Not Specified |
| Fridge Shelves | 3 (adjustable) |
| Shelf Material | Safety Glass |
| Sliding or Folding Shelf | Yes (EasyAccess) |
| Fridge Door Bins | 6 |
| Egg Tray | Not Specified |
| Bottle Rack | Yes |
| Fridge Light | LED |
| Freezer Position | Top |
| Freezer Shelves | Not Specified |
| Freezer Drawers | Not Specified |
| Freezer Door Bins | Not Specified |
| Freezer Star Rating | 4 Star |
| Freezer Light | LED |
| Water Dispenser | No |
| Water Line Required | No |
| Water Tank Capacity | N/A |
| Ice Maker | Not Specified |
| Ice Type | N/A |
| Water Filter | N/A |
| Self-Cleaning Nozzle | N/A |

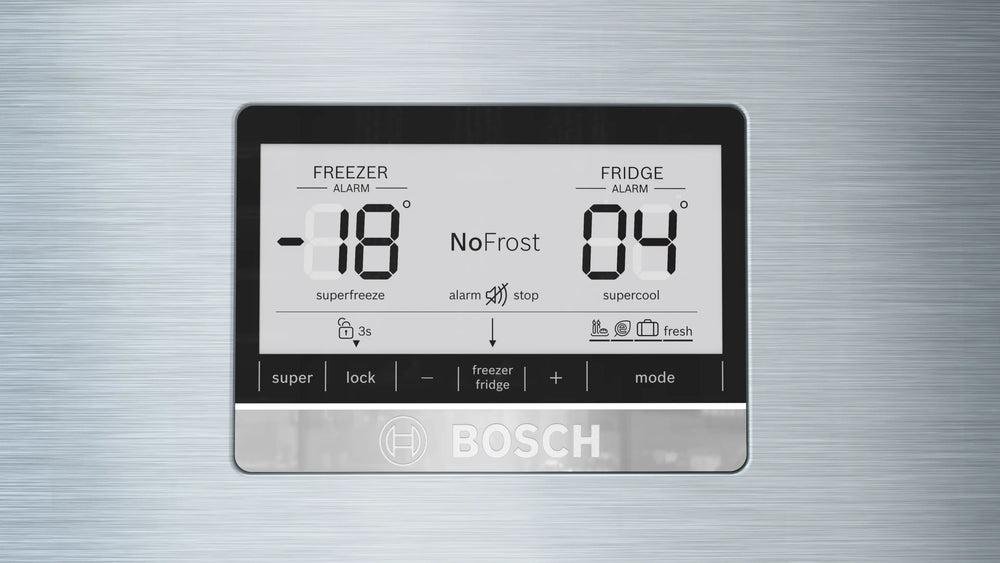

| Display and Controls | Electronic control with built-in display |
| See-Through Door Panel | No |
| Door-in-Door Compartment | No |
| Door Open Alarm | Not Specified |
| Child Lock | Not Specified |
| Zero-Clearance Installation | Yes (Perfect Fit) |
| Wi-Fi | Yes |
| Companion App | Home Connect |
| Voice Assistant | Not Specified |
| AI Energy Saving | No |
| Smart Diagnosis | Not Specified |
| Internal Camera | No |
| Width | 860 mm |
| Height | 1860 mm |
| Depth (with handle) | 840 mm |
| Depth without Door | Not Specified |
| Packing Dimensions | 930 x 1930 x 880 mm |
| Net Weight | 102.4 kg |
| Packing Weight | 111.1 kg |
| Product Warranty | 1 Year |
| Warranty Provider | Official Bosch Pakistan warranty via Kaka Home |
Reviews
Ahsan Ayaz
Bosch CavalryIts premium Bosch store really a great plate form for original appliances. Thanks to Bosch brand store for giving us this opportunity to avail these offers
Kamran Ahmad
Bosch CavalryIts premium Bosch store really a great plate form for original appliances. Thanks to Bosch brand store for giving us this opportunity to avail these offers
Areeba Sajid
Bosch CavalryI visited this showroom yesterday. They had a wide variety of refrigerators available. I have also got a refrigerator. Staff was kind and knowledgeable, guided me. Recommended.
Zaheer Shorts
Bosch CavalryBosch appliance ka product zabardast hai, lekin delivery thori late ho gae, lekin log boht achy or kind thy! Farhan ne sab kuch bohat achi tarah manage kia.
HY shop
Bosch CavalryBosch appliance ka product zabardast hai. Farhan ne sab kuch bohat achi tarah manage kia.
Talha
Bosch CavalryI just wanted to appreciate Hira cooperation and prompt reply to my queries. I recently received a microwave oven and more products from this store. which is appreciable.
rizwanRıza Ali Zeb
Bosch Packages MallI visited there to buy a gree 1.5 ton split but when i meet the sales person in bosch really they guide me very well thats why i bought bosch and i am happy from it.
MUHAMMAD SAMI ULLAH
Bosch Packages MallGreat experience as always. If you're going to buy any kind of electronic appliances, Bosch Brand Store Packages Mall is your go to store. The staff is very friendly and guides properly. I am happy with my experience. Trusted and recommended.
hania jutti
Bosch Packages Malli am really happy with my bosch electric stove. it looks great in the kitchen and feels very well made. the heating is quick and even, and the controls are simple to use. i also really like how easy the smooth surface is to clean after cooking. i would happily recommend it.
Kiran Bhatti
Bosch Packages MallNice and well trained staff
Meer Mujahid Buller
Bosch Packages MallBahadur ensured a friendly and informative experience at the Bosch outlet.
Faraz Gujjar
Bosch Packages MallAuthentic Bosch products with Good price
Ehtesham Nasrullah
LG BrandBest for LG products and Bosh products
ZeeShan Raza
LG BrandVery cooperative and welcoming staff. Bahadur Shair dealt me with a sparkling smile on his face and a promising satisfaction with my purchase.
Humza Ashraf Cheema
LG BrandThe authentic lg brand shop for Lahore.
Afi Mujeeb
LG BrandBrand showroom of LG electronics goods. led and home appliance.
Usman Akram
LG BrandGood place for LG brands
Haris Ali
LG BrandVery good experience with LG. Specially Mr Bahadur. He really helped me in replacing my c8 tv, and suggested a better one (c9). It took them a while to deliver the new c9 tv but it was worth waiting for. Thank you.
mujahid ibrahim
Samsung Experience CavalryVery reasonable prices as compare to market & staff is also nice
Meerab Tariq
Samsung Experience CavalryGood Cooperative Staff, Must visit gain
Khadija Bibi
Samsung Experience CavalryStaff is friendly and they guide properly
Muhammad Mustafa
Samsung Experience CavalryService was excellent and staff was very humble
Qamar Zaman
Samsung Experience CavalryI had an excellent experience at Vision Electronics, Samsung Experience Cavalry (KAKA) Outlet. The staff was professional, knowledgeable, and very helpful throughout the purchase process. I recently bought an LED TV from them and was impressed by their customer service, product quality, and honest guidance.
Ather Virk
Samsung Experience CavalryThis is one of the best store in Lahore for buying Samsung and Bosch electronics. The staff is well knowledgeable about products. Highly recommended.
Ahsan Ayaz
Bosch IslamabadGot my BOSCH refrigerator delivered today. Fast delivery service. Visited the showroom and the staff was knowledgeable and guided me properly. I am satisfied with my purchase and the overall experience.
Zeeshan Ahmed
Bosch IslamabadAfter-sales service was excellent! Farhan resolved my Bosch TV problem efficiently. It's nice to encounter such committed customer service.
Muhammad Abdullah
Bosch IslamabadAll staff is cooperative i am well satisfied after buying products from there
Sobia naz
Bosch IslamabadThis is amazing
Meerab Tariq
Bosch IslamabadI must appreciate the product range, they ordered by product on pre-booking and delivered on time to me. Must recommended for bosch new range shopping.
Ali Akbar Qureshi
Bosch IslamabadKnowledgeable staff.
Why buy from Kaka Home?
Authorized Bosch retailer
Officially authorized to sell and support Bosch products in Pakistan — not a grey import.
40+ years in business
Serving Pakistani households for over four decades, with showrooms across Lahore.
100% genuine stock
Every unit sourced through Bosch's official Pakistan distribution channel.
Official manufacturer warranty
Registered under Bosch's official Pakistan warranty at the time of purchase.
In-house service center
Installation, repairs and after-sales support handled directly by Kaka, not outsourced.
Same-day Lahore delivery
Order before 4pm and receive it the same day within Lahore.
Frequently Asked Questions
– What does 687 liters mean on the Bosch KDN86HIE0M, and how much space is usable?
687 liters is the gross volume of the Bosch KDN86HIE0M, made up of a 505-liter fridge and a 182-liter freezer compartment. Usable net capacity is 641 liters once shelves, drawers and wall linings are accounted for, which suits households of 6 or more people.
– Will the Bosch KDN86HIE0M fit through a standard doorway?
Bosch KDN86HIE0M measures 860 mm wide, 1860 mm high and 840 mm deep with handles, or 800 mm deep without them. Doorways narrower than 840 mm need the handles removed, and openings under 800 mm may need the room door taken off its hinges during delivery. Net weight is 102.4 kg.
– How much electricity does the Bosch KDN86HIE0M use per year?
329 kWh per year is the rated energy consumption of the Bosch KDN86HIE0M, which works out to about 0.9 kWh a day. SuperCooling only adds extra load when switched on after a big grocery run, and Total No Frost removes the need for manual defrosting.
– How long does the Bosch KDN86HIE0M keep food frozen during load shedding?
Up to 14 hours is the storage time Bosch rates for the KDN86HIE0M freezer during a power failure, as long as the doors stay closed. That buffer covers most load shedding cycles in Pakistan without frozen meat, vegetables or ice starting to thaw.
– What can the Bosch KDN86HIE0M do through the Home Connect app?
Home Connect links the KDN86HIE0M to a smartphone or tablet over Wi-Fi, so its status can be monitored remotely. Owners can check on the refrigerator from work or while travelling, and the Home Connect app runs on both Android and iOS devices.
– Can the Bosch KDN86HIE0M stand right next to a wall or cabinet?
Yes, Bosch KDN86HIE0M carries Perfect Fit design, so it can stand directly beside side walls or kitchen cabinets without a side gap. That saves floor space in compact Pakistani kitchens, where the refrigerator often sits in a corner or between counters.
